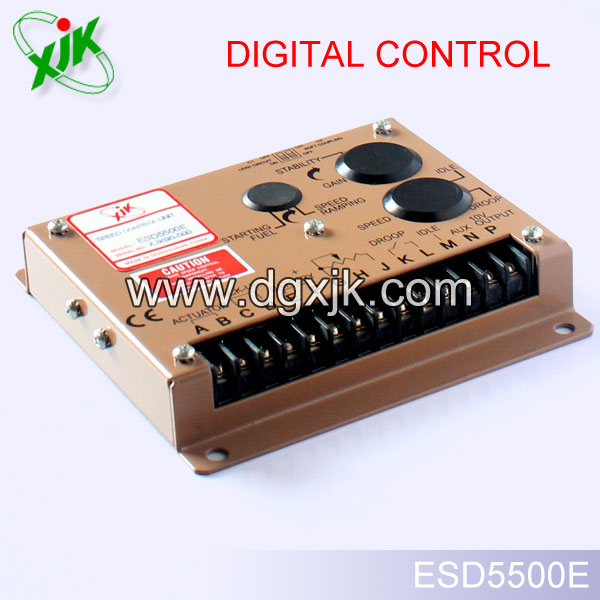

Electronic Governor ESD5500E

[Previous:Governor EFC3044196]　 [Next:Electronic Governor ESD5111]

Details

Our company's ESD5500E adopts digital control technology with good quality.
On the basis of the company's digital ESD5111, the startup fuel volume control and smooth and slow startup process control are newly added, and the setting of parameters can be automatically identified and adjusted. These new features can solve the black smoke phenomenon caused by rapid refueling during the startup process of the engine, and greatly improve the engine life. It is currently a model with very rich and complete functions, and is widely used in the new generation.
Technical specifications:
Speed stability better than ± 0.25%
Speed range 1KHz~7.5KHz
Maximum thermal stability ± 1%
IDLE adjustment 160 ± 20Hz~95% of rated speed
DROOP adjustment minimum position is 15Hz ± 6Hz/load current change per ampere
Maximum position 400Hz ± 75Hz/load current change per ampere
External speed adjustment ± 200Hz (external 1K Ω)
AUX input sensitivity 148Hz/1V, ± 10Hz,
Impedance 1M Ω
START FUEL adjustment 160 ± 20Hz~70% of rated speed
RAMP time adjustment 1.5~20Sec
10V output current up to 20mA
Environment:
Working temperature range -40 ℃~85 ℃
Working humidity range up to 95%
Storage temperature -55 ℃~90 ℃
Vibration 20-100HZ 500mm/Sec
Input power supply:
Power supply voltage 12V and 24V DC battery system
Ground polarity negative electrode
Power consumption 50mA
The minimum continuous current of the actuator is 2.5A; Max 10A
Speed sensor signal 0.5~120 RMS
The above performance parameters are measured at a working frequency of 4000Hz
